Emerson ER22010/T (ER11020/T) Rectifier Module

editor:admin    date:2014-07-22

Operation Principle of ER22010/T Rectifier Module

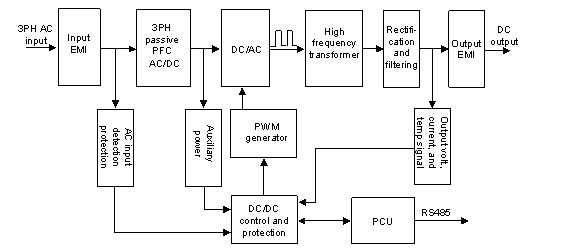

The Emerson rectifiers comprise two parts: 3-phase passive PFC and DC/DC converter circuit. Besides, there are the auxiliary power supply and the I/O detection protection circuit. The operation principle of rectifiers is shown in Figure ER22010/T
 Rectifier operation principle of ER22010/T
1) The 3-phase passive PFC circuit at the front-end comprises input EMI and passive PFC, which are used to rectify and filter the AC input, and to calibrate the input current, so as to ensure that the power factor of the input circuit is bigger than 0.94, meeting the related EMI and EMC standards in GB/T 17794.2.2-2003, as well as the 3-phase harmonic standard in DL/T781-2001.
2) The DC/DC converter circuit at the back end uses PWM generator to control the PFC-output DC voltage, and output DC voltage through high frequency transforming, rectification and filtering. It is used to convert the rectified voltage from the front end into the steady DC voltage output as required by the power system.
3) The auxiliary power supply is located between the input passive PFC and the DC/DC converter. It uses the DC output from the 3-phase passive PFC and powers the control circuits.
4) The input detection circuit can detect input over/under-voltage and phase failure, while DC/DC detection circuit can detect output voltage/current and heat sink temperature. All these signals are used for the control and protection of DC/DC conversion.
Others refer to
Major Functions of ER22010/T(ER11020/T Emerson)
1. Protection
1) Input over/under-voltage protection
The rectifiers are capable of over/under-voltage protection. When the input voltage is smaller than the set under-voltage or bigger than the over-voltage, the rectifier will be shut down for protection. There will be no DC output, and the protection indicator (yellow) will turn on. The rectifier will return to normal operation when the voltage returns normal.
2) Output over-voltage protection & under-voltage alarm
The rectifiers are capable of output over-voltage protection and under-voltage alarm. When the output voltage is higher than the preset over-voltage, the rectifier will shut down, with no output, and the alarm indicator (red) will turn on. The rectifier cannot be auto-reset. You need to power it off and on to reset it.
When the output voltage is lower than the preset under-voltage, the alarm will be raised, but the rectifier will keep its output, and the protection indicator (yellow) will turn on. This alarm will be cleared once the voltage restores to normal.
3) Short circuit foldback of output
The rectifiers are capable of limiting output upon short circuit, during which the output current will be limited to 40% of rated output current. The output will restore to normal after the short is removed.
4) Phase failure protection
The rectifiers are capable of phase failure protection. Upon input phase failures, the rectifiers will derate and output half power. The output current is 5A at the output voltage of 260V.
5) Over-temperature protection
The over-temperature protection will be triggered when the temperature is higher than the set point, either due to too high ambient temperature, or because rectifier air inlet is blocked. The Protection Indicator (yellow) on the rectifier front panel will turn on, and there will be no output. This protection can be reset automatically when abnormality is cleared and rectifier internal temperature restores to normal.
6) Front-end over-current protection
This protection will be triggered upon over-current at the rectifier’s rectification part. It cannot be reset automatically. To reset it, you need to power it off and on.
2. Other functions
1) Fan speed control
There are 3 classes of fan speed: stop, half-speed and full speed, determined by taking both temperature and output current into consideration.
2) Fault display
Upon rectifier faults, the alarm information will real-time flash on LED in the form of fault code. You can switch the display content to voltage by pressing the A/V button (current/voltage display switching button).
3) Communication function
The rectifier can communicate with the host through RS485 port. It can report to the host its output voltage, current, protection and alarm information, as well as receive and execute control orders from the host. See the following table for details.
 Emerson ER22010/T series rectifier communication function

Remotely acquiring alarm/digital signal
Report to the monitor the fault signals and protection signals (such as AC over/under-voltage, phase failure, output over/under-voltage, and over-temperature)
Remotely acquiring analog signal
Measure the output voltage and current of the rectifier and report them to the monitor
Remotely controling system state
Control the rectifier’s power on/off and EC/BC switchover as per the orders of the monitor
The rectifier also provides manual control function, enabling you to mask the monitor’s control
Remotely adjusting voltage analog signal
Adjust rectifier’s output voltage as per the orders of the mointor
Adjust rectifier’s output current limit within the range of 10% ~ 100% as per the orders of the monitor

Specifications of ER22010/T, ER11020/T,
Input voltage
323V ~ 475V (3ph 3 wire system)
Input current
≤ 10A
≤ 10A
AC input frequency
45Hz ~ 65Hz
Power factor
Output voltage range
176V ~ 320V
88 ~ 160V
Rated output current
Max. output current
Soft start time
3 ~ 8s
Current stabalization (for 20% rated current or above)
≤ ± 0.5%
≤ 0.1%
Voltage stabalization
≤ ± 0.5%
Load sharing imbalance
≤ ± 5%, (typical 3%, 50% ~ 100% rated load)
Accoustic noise
Short circuit foldback of output
Foldback current ≤ 40% rated current. Auto-reset enabled
Output over-voltage protection
325 ± 5Vdc
165 ± 5Vdc
Output under-voltage protection
198 ± 1Vdc
99 ± 1Vdc
Input over-voltage
Protection point
485 ± 10Vac
Recovery point
460 ± 15Vac
Input under-voltage
Protection point
313 ± 10Vac
Recovery point
335 ± 10Vac
Phase failure protection
Limited power output 5A/260V
Limited power output 10A/130V
Over-temperature protection
Protection point
Recovery point
Fan speed control
Under the combined control of temperature and current
Insulation resistance
I/O to chassis and input to output >10MΩ (Test voltage: 1000Vdc)
Dielectric strength
Impose AC between I/O and the chassis aftering shorting the input and output. Frequency: 50Hz. RMS: 2000V. No breakdown or flashover
Immunity To Electrostatic Discharge
GB/T 17626.2-1998 Table 2 Level 3
Immunity To Oscillatory Waves
GB/T 17626.12-1998 Table 2 Level 3
Immunity To Conducted Interference
EN 55022 Class A
Immunity To Electrical Fast Transient/Bursts
GB/T17626.4-1998 Level 3
Immunity To Surges
GB/T17626.5-1998 Level 3
Immunity To Conducted Disturbances, Induced By Radio-Frequency Field
GB/T17626.5-1998 Level 3
Immunity To Power Frequency Magnetic Fields
GB/T17626.8-1998 Level 4
Immunity To Damped Oscillatory Magnetic Field
GB/T17626.10-1998 Level 4
Immunity to Radiated, RF Electromagnetic Field
GB/T17626.3-1998 Level 3
Immunity to Voltage Dips, Short Interruptions and Voltage Variations
95% 0.5 Period       >30% 25 Period      >90% 250 Period
Operation temperature
-10°C ~ 40°C
Storage temperature
-25°C ~ 55°C
Relative humidity
≤ 95%
Air pressure
70 ~ 106kPa
Size (L × W × H) (Unit: mm)
Cooling method
Forced cooling, with dust proof design
