GSBT 3921 is a battery wireless monitor for telecom and power industry applications.By around-the-clock monitoring, the battery monitor checks and analyzes the condition of each cell for resistance, overall voltage, overall current, ambient temperature, etc. It could provide early warning for batteries malfunction before they are warned, and thus optimize their performance...

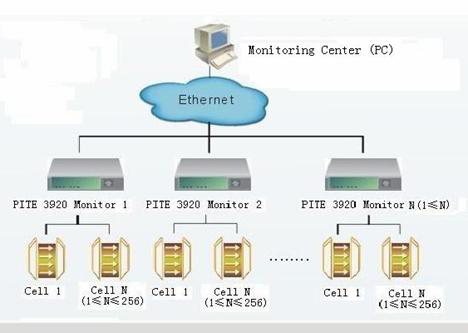

Example of Application
GSBT 3921 is applied for real time monitoring through the connection of internet. By using the remote connection, you have all data in PC and keep alert to the warning alarm.
Features · Monitor individual cells up to 4, 8, 12, 24, 32, 48, 54, 108 and 256. · Unique internal resistance monitoring technique reduces the damage to battery · Automatically scan internal resistance and voltage, and keeps their records · Scheduled auto-test for battery internal resistance, automatically save record · Analyze changing trend of internal resistance and predict the battery life span. · Real time monitoring on PC through internet connection · Auto capacity testing in charging and discharging of battery string · Auto-monitors battery string performance. Early warning for bad cells · 3 ways of early warning for battery problem ensures its performance · User could self-define the upper limit and lower limit of battery string volt, single cell volt, cell internal resistance, temperature and the alike. When the above parameters exceed the limits, the monitor and remote connecting PC will give alarm and record the case. · Fully take use of battery, save your money and it is environment friendly · Collect data through the central computer. No personnel needed.
Cell Voltage 12V 0-16V Accuracy: 0.2%rdg±6dgt 2V 0-3V Accuracy: 0.5%rdg±6dgt Internal resistance range 0.00-100mΩ Accuracy: 1%rdg±6dgt Total voltage 0-500V (could be customized) total current 0-100A(current sensor is optional) Monitoring cells amount 4,8,12,24,32,48,54,108,256 Memorizer 1 MB Cells per String 32 Sampling Digit 10 Numbers of String 2 Temperature -20~40℃ Dimensions(mm) 483*386*185 Weight 5 kg
Technical Parameters
NOTE: Single voltage, total voltage and total cells of batteries could be customized accordingly.
